Fire Pillows

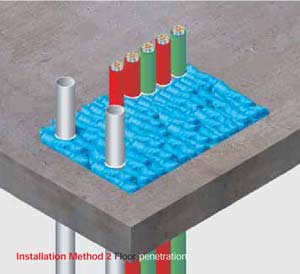

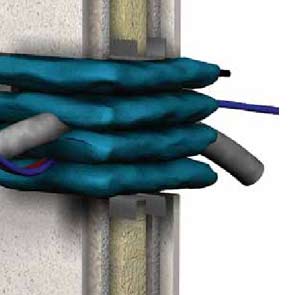

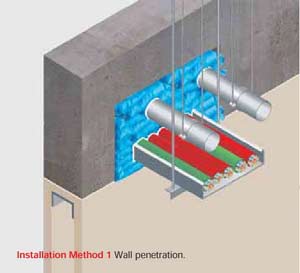

Penetration Seals on Floors/Slabs/Walls

Fire Pillows are made from quality cloth envelopes enclosing a high temperature fire resistant granulatedmaterial. They can provide permanent protection from the spead of fire, but they are particularly usefulwhen only temporary protection is required.

Fire Pillows are used whenever openings require reinstatement, whether penetrated or not by pipes or cable services.Risk of fire within a building is much greater during the construction phase than when completed. The pillowsare a low cost and efficient method for fire sealing that requires minimum labour time for installation.They can be removed and re-used if services need relocation.

Feature Advantage

  • •Fire protection for up to 3 hours
  • •Simple installation.
  • •Re-usable.
  • •Water repellent covers.
  • •Suitable for telecommunication exchanges.
  • •Maintenance free.
  • •Allows rearrangement of services.
  • •Non toxic.
  • •Attractive appearance.

Fire Performance

Fire Pillows have been successfully tested and accessed by independent laboratories to meet the requirementsof AS 1530: Part 4, AS 4072, BS 476: Part 20 and prEN 1366: Part 3. In a fire, the pillows will remain in placeand form a fire barrier by charring and creating a sold mass of insulating material.

Available in three sizes.

Large: 300mm x 250mm x 40mm, 30 pieces/pack.

Medium: 200mm x 250mm x 40mm, 50 pieces/pack.

Small: 100mm x 250mm x 30mm, 60 pieces/pack.
